Product Summary

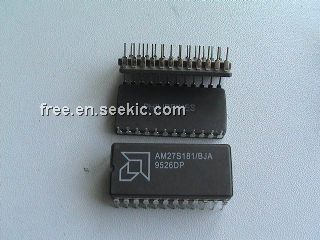

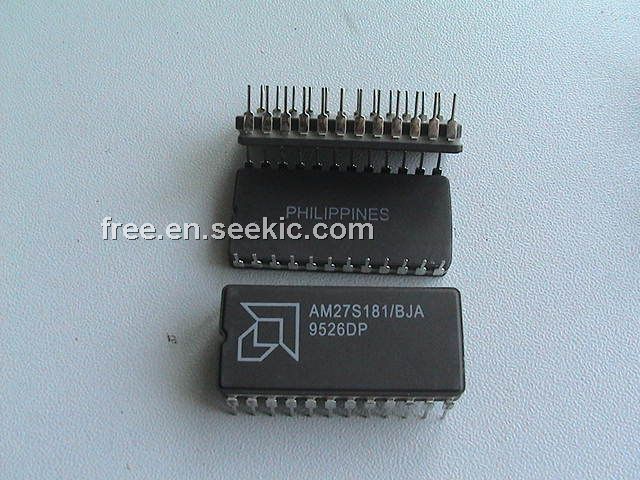

The AM27S181DC is a schottky TTL programmable read-only memory. The AM27S181/BJA has three-state outputs which are compatible with low-power schottky bus standards capable of satisfying the requirements of a variety of microprogrammable controls, mapping functions, code conversion, or logic replacemnt. Easy word-depth expansion is facilitated by both active LOW and active HIGH output enables. The AM27S181/BJA is also available in a 300-mil, lateral-center DIP.
Parametrics
AM27S181/BJA absolute maximum ratings: (1)storage temperature: -65 to 150℃; (2)ambient temperature with power applied: -55 to 125℃; (3)supply voltage: -0.5 to 7.0V; (4)DC votlage applied to putputs: -0.5 to VCC max; (5)DC voltage applied to outputs during programming: 21V; (6)output current into outputs during programming: 250A; (7)DC input voltage: -0.5 to 5.5V; (8)DC input current: -30 to 5mA.
Features
AM27S181/BJA features: (1)fast access time allows high system speed; (2)50% power saving on deselected parts--enhances reliability through total system heat reduction; (3)platinum silicide fuses guarantee high reliability, fast programming and exceptionally high programming yields; (4)rapid recovery from power-down state provides minimum delay.

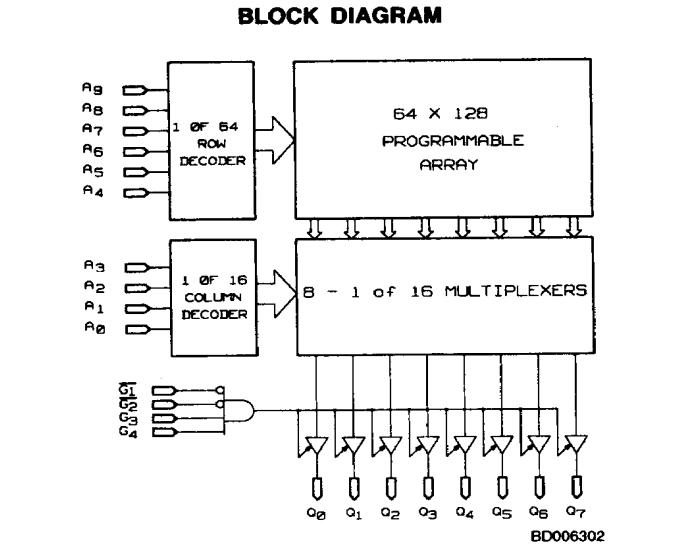

Diagrams
