Product Summary

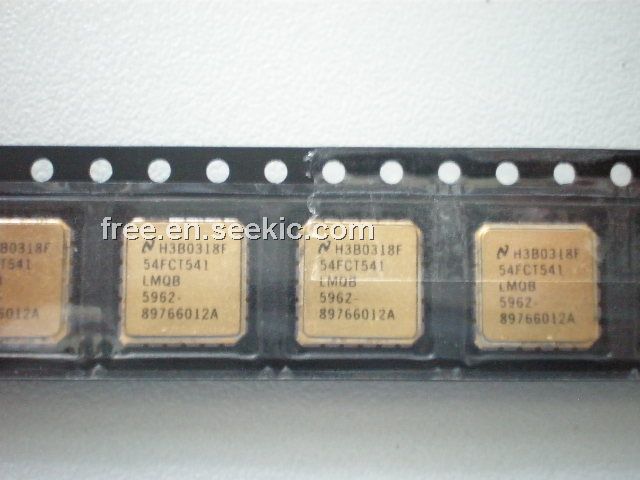

The 54FCT541LMQB is a Octal Buffer/Line Driver. The 54FCT541LMQB is an octal buffer and line driver with TRI-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus-oriented transmitter/ receiver.

Parametrics

54FCT541LMQB absolute maximum ratings: (1)Storage Temperature : -65℃ to +150℃; (2)Ambient Temperature under Bias : -55℃ to +125℃; (3)Junction Temperature under Bias Ceramic : -55℃ to +175°C; (4)VCC Pin Potential to Ground Pin : -0.5V to +7.0V; (5)Input Voltage : -0.5V to +7.0V; (6)Input Current : -30 mA to +5.0 mA; (7)Voltage Applied to Any Output in the Disabled or Power-Off State : -0.5V to 5.5V; (8)in the HIGH State : -0.5V to VCC; (9)Current Applied to Output in LOW State (Max) : twice the rated IOL (mA); (10)DC Latchup Source Current : -500 mA.

Features

54FCT541LMQB features: (1)Non-inverting buffers; (2)TTL input and output level compatible; (3)CMOS power consumption; (4)Output sink capability of 48 mA, source capability of 12 mA; (5)Flow-through pinout for ease of PC board layout; (6)Standard Microcircuit Drawing (SMD) 5962-8976601.

Diagrams

54FCT541LMQB dimension
