AD7111BQ

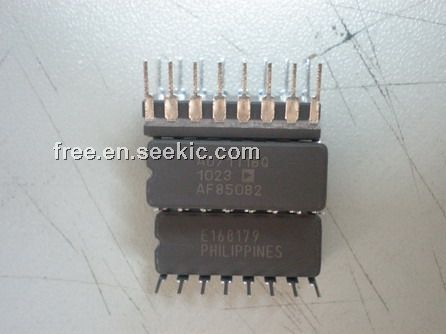

AD7111BQ, D/A Converter, DIP, 7.0V, 1W, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $56.00~56.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	56.00 / Piece

PartNumber:: AD7111BQ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 100/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. HELEN's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-22

From Other Seller

Part Number:AD7111BQ
US $56.00 - 56.00
Quantity:

piece

Product Summary

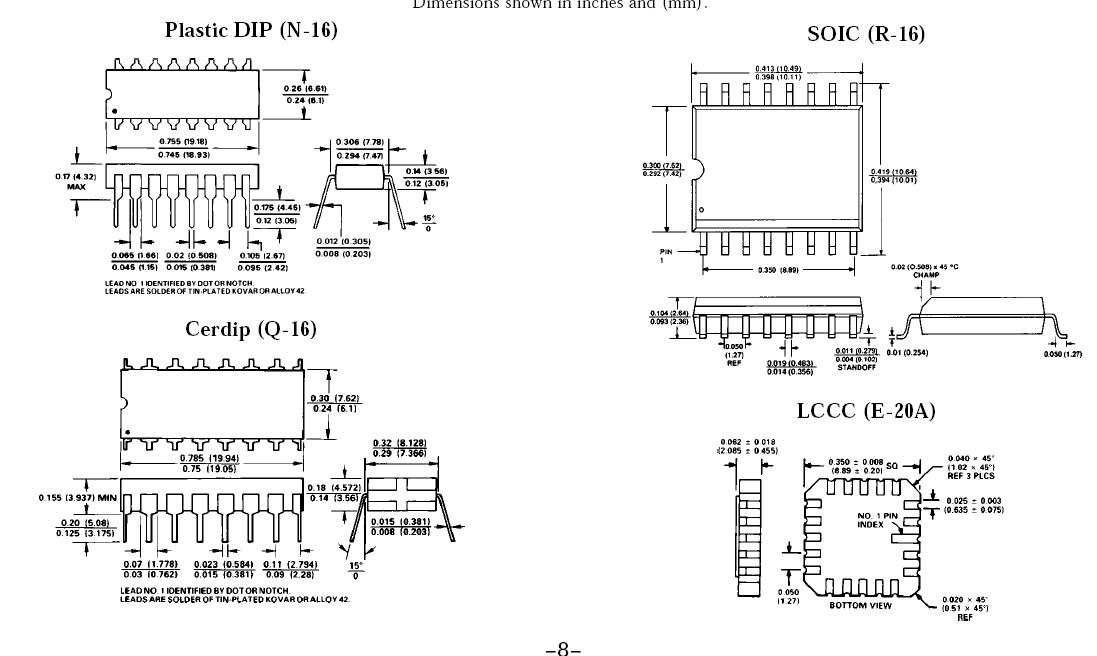

The AD7111BQ is a D/A Converter. The AD7111BQ is monolithic multiplying D/A converters featuring wide dynamic range in a small package. Both DACs can attenuate an analog input signal over the range 0 dB to 88.5 dB in 0.375 dB steps. They are available in 16-pin DIPs and SOIC packages. The AD7111BQ is also available in a 20-terminal LCCC package. The degree of attenuation across the DAC is determined by an 8-bit word applied to the onboard decode logic. This 8-bit word is decoded into a 17-bit word which is then applied to a 17-bit R-2R ladder. The very fine step resolution, which is available over the entire dynamic range, is due to the use of this 17-bit DAC. The applications of the AD7111BQ include Audio Attenuators, Sonar Systems, Function Generators and Digitally Controlled AGC System.

Parametrics

AD7111BQ absolute maximum ratings: (1)VDD (to DGND) : +7 V; (2)VIN (to AGND) : ±35 V; (3)Digital Input Voltage to DGND : –0.3 V to VDD + 0.3 V; (4)IOUT to AGND : –0.3 V to VDD; (5)VRFB to AGND : ±35 V; (6)AGND to DGND : 0 to VDD; (7)DGND to AGND : 0 to VDD; (8)Power Dissipation, DIP : 1 W; (9)θJA, Thermal Impedance : 117℃/W; (10)Lead Temperature (Soldering, 10 secs) : +300℃; (11)Power Dissipation, SOIC : 1 W; (12)θJA, Thermal Impedance : 75℃/W; (13)Lead Temperature (Soldering) Vapor Phase (60 secs) : 215℃; (15)Infrared (15 secs) : 220℃; (16)Power Dissipation, LCCC : 1 W; (17)θJA, Thermal Impedance : 76℃/W; (18)Lead Temperature (Soldering, 10 secs) : +300℃; (19)Operating Temperature Range Commercial (K, L Versions) : 0℃ to +70℃; (21)Industrial (B, C Versions) ： –40℃ to +85℃; (22)Extended (T, U Versions) : –55℃ to +125℃; (23)Storage Temperature Range : –65℃ to +150℃.

Features

AD7111BQ features: (1)Dynamic Range: 88.5 dB; (2)Resolution: 0.375 dB; (3)On-Chip Data Latches; (4)+5 V Operation; (5)AD7111A Pin Compatible with AD7524; (6)Low Power.
