Product Summary

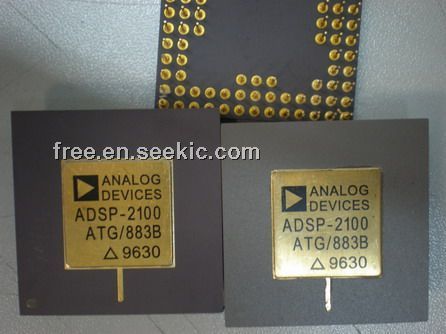

The ADSP2100ATG/883B is a pin- and code-compatible single-chip microprocessor. It is optimized for digital signal processing and other high-speed numeric processing applications. The applications of the ADSP2100ATG/883B are digital filtering, fast fourier transforms, image processing, radar, sonar, speech processing, telecommunications.
Parametrics
ADSP2100ATG/883B absolute maximum ratings: (1)supply voltage: -0.3 to +7V; (2)input voltage: -0.3 to VDD+0.3V; (3)output voltage swing: -0.3 to VDD+0.3V; (4)operating temperature range: -55 to +125℃; (5)storage temperture range: -65 to 150℃.
Features
ADSP2100ATG/883B features: (1)separate program and data buses, extened off-chip; (2)single-cycle direct access to 16k*16 of data memory; (3)single-cycle direct access to 32k*24 of program memory; (4)dual purpose program memory for both instruction and data storage; (5)three independent computational units; (6)single-cycle instrction execution; (7)multifunction instructions; (8)four external interrupts; (9)80ns cycle time; (10)790mW maximum power dissipation.

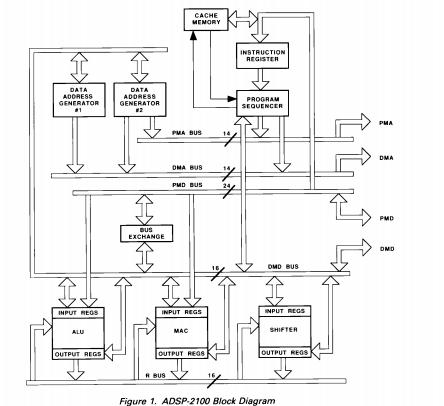

Diagrams
