Product Summary

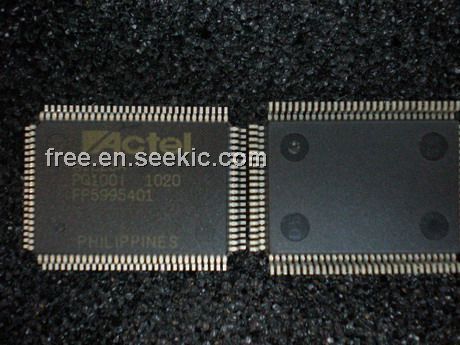

The A1225APQ100I is a field programmable gate array (FPGA). The A1225APQ100I presents a two-module architecture, consisting of C-modules and S-modules. The module is optimized for both combinatorial and sequential designs. Based on Actel’s patented channeled array architecture, the A1225APQ100I provides significant enhancements to gate density and performance while maintaining downward compatibility with the ACT 1 design environment and upward compatibility with the ACT 3 design environment.

Parametrics

A1225APQ100I absolute maximum ratings: (1)VCC, DC Supply Voltage: -0.5 to +7.0 V; (2)VI, Input Voltage: -0.5 to VCC +0.5 V; (3)VO, Output Voltage: -0.5 to VCC +0.5 V; (4)IIO, I/O, Source/Sink Current: ±20 mA; (5)TSTG, Storage Temperature: -65 to +150℃.

Features

A1225APQ100I features: (1)Up to 8000 Gate Array Gates (20,000 PLD equivalent gates); (2)Replaces up to 200 TTL Packages; (3)Replaces up to eighty 20-Pin PAL Packages; (4)Design Library with over 500 Macro Functions; (5)Single-Module Sequential Functions; (6)Wide-Input Combinatorial Functions; (7)Up to 1232 Programmable Logic Modules; (8)Up to 998 Flip-Flops; (9)Datapath Performance at 105 MHz; (10)16-Bit Accumulator Performance to 39 MHz; (11)Two In-Circuit Diagnostic Probe Pins Support Speed Analysis to 50 MHz; (12)Two High-Speed, Low-Skew Clock Networks; (13)I/O Drive to 10 mA; (14)Nonvolatile, User Programmable; (15)Logic Fully Tested Prior to Shipment; (16)1.0-micron CMOS Technology.

Diagrams

A1225APQ100I block diagram
