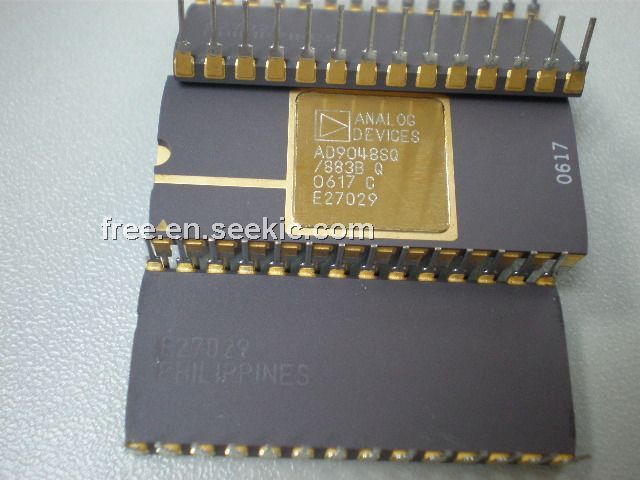

AD9048SQ/883B

AD9048SQ/883B, Monolithic 8-Bit Video A/D Converter, DIP, -0.5 V dc to +7.0V, -1.0 to 6.0 mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $56.00~56.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 65 :	56.00 / Piece

PartNumber:: AD9048SQ/883B

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 65/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. HELEN's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-27

From Other Seller

Part Number:AD9048SQ/883B
US $56.00 - 56.00
Quantity:

piece

Product Summary

The AD9048SQ/883B is a an 8-bit, 35 MSPS flash converter. Because of its wide bandwidth, it is an ideal choice for real-time conversion of video signals. Input bandwidth of the AD9048SQ/883B is flat with no missing codes. The device operates over two ambient temperature ranges and with two grades of linearity are available. Linearities of either 0.5 LSB or 0.75 LSB can be ordered for a commercial range of 0℃ to +70℃ or extended case temperatures of -55℃ to +125℃. The applications of the AD9048SQ/883B include Professional Video Systems, Special Effects Generators, Electro-Optics, Digital Radio and Electronic Warfare (ECM, ECCM, ESM).

Parametrics

AD9048SQ/883B absolute maximum ratings: (1)VCC to DGND: -0.5 V dc to +7.0 V dc; (2)AGND to DGND: -0.5 V dc to +0.5 V dc; (3)VEE to AGND: +0.5 V dc to -7.0 V dc; (4)VIN, VRT or VRB to AGND: +0.5 V to VEE; (5)VRT to VRB: -2.2 V dc to +2.2 V dc; (6)CONV, NMINV or NLINV to DGND: -0.5 V dc to +5.5 V dc; (7)Applied Output Voltage to DGND: -0.5 V dc to +5.5 V dc2; (8)Applied Output Current, Externally Forced: -1.0 mA to +6.0 mA; (9)Output Short-Circuit Duration: -1.0 sec; (10)Operating Temperature Range (Ambient): -55 to +125℃; (11)Maximum Junction Temperature (Plastic): +150℃; (12)Maximum Junction Temperature (Hermetic): +175℃; (13)Lead Temperature (Soldering, 10 sec):+300℃; (14)Storage Temperature Range: -65 to +150℃.

Features

AD9048SQ/883B features: (1)35 MSPS Encode Rate; (2)16 pF Input Capacitance; (3)550 mW Power Dissipation; (4)Industry-Standard Pinouts; (5)MIL-STD-883 Compliant Versions Available.
