Product Summary
The AD536ASD883B is an Integrated Circuit True RMS-to-DC Converter which performs true rms-to-dc conversion. It offers performance which is comparable or superior to that of hybrid or modular units costing much more. The AD536ASD883B directly computes the true rms value of any complex input waveform containing ac and dc components. The AD536ASD883B has a crest factor compensation scheme which allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the device extends the measurement capability to 300 kHz with 3 dB error for signal levels above 100 mV.
Parametrics
AD536ASD883B absolute maximum ratings: (1)Supply Voltage: Dual Supply: ±18 V, Single Supply: +36 V; (2)Internal Power Dissipation: 500 mW; (3)Maximum Input Voltage: ±25 V Peak; (4)Buffer Maximum Input Voltage: ±VS; (5)Maximum Input Voltage: ±25 V Peak; (6)Storage Temperature Range: –55℃ to +150℃; (7)Operating Temperature Range: –55℃ to +125℃; (8)Lead Temperature Range(Soldering 60 sec): +300℃; (9)ESD Rating: 1000 V.
Features
AD536ASD883B features: (1)True RMS-to-DC Conversion; (2)Wide Response Capability: Computes RMS of AC and DC Signals, 450 kHz Bandwidth: V rms > 100 mV, 2 MHz Bandwidth: V rms >1V, Signal Crest Factor of 7 for 1% Error; (3)dB Output with 60 dB Range; (4)Low Power: 1.2 mA Quiescent Current; (5)Single or Dual Supply Operation; (6)Monolithic Integrated Circuit; (7)–55℃ to +125℃ Operation.

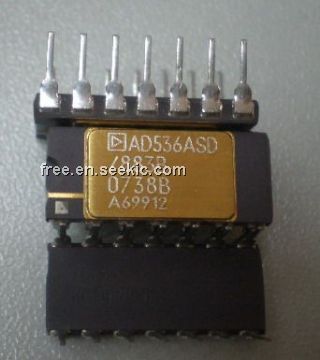

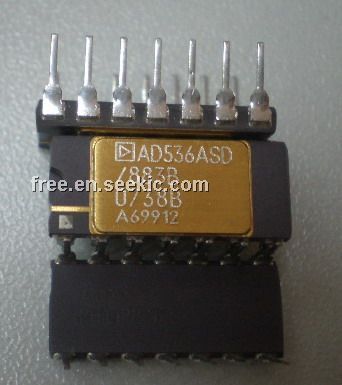

Diagrams
