Product Summary

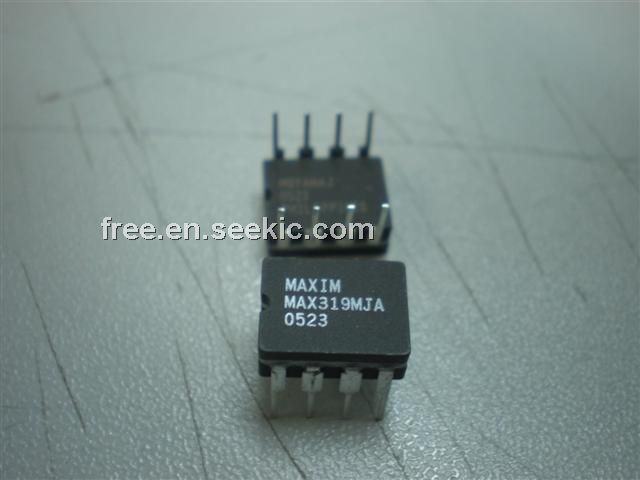

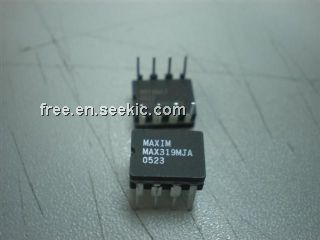

The MAX319MJA is a CMOS Analog Switch. The MAX319MJA is fabricated with Maxim’s new improved silicon-gate process. Design improvements guarantee extremely low charge injection (10pC), low power consumption (35μW), and electrostatic discharge (ESD) greater than ±2000V. The 44V maximum breakdown voltage allows rail-to-rail analog signal handling capability. The applications of the MAX319MJA include Sample-and-Hold Circuits, Guidance and Control Systems, Heads-Up Displays, Test Equipment, Military Radios, Communications Systems, Battery-Powered Systems, PBX and PABX.
Parametrics
MAX319MJA absolute maximum ratings: (1)Voltage Referenced to V- V+ : +44V; (2)GND : +25V; (3)VL : (GND - 0.3V) to (V+ + 0.3V); (4)IN, COM, NC, NO : (V- - 2V) to (V+ + 2V) or 30mA; (5)Continuous Current (any terminal) : 30mA; (6)Peak Current, NC, NO, COM (pulsed at 1ms, 10% duty cycle max) : 100mA; (7)ESD : ±2000V; (7)Continuous Power Dissipation (TA = +70℃) Plastic DIP (derate 9.09mW/℃ above +70℃) : 727mW; (8)SO (derate 5.88mW/℃ above +70℃) : 471mW; (9)CERDIP (derate 8.00mW/℃ above +70℃) : 640mW; (15)Operating Temperature Ranges : -55℃ to +150℃; (16)Lead Temperature (soldering, 10sec) : +300℃.
Features
MAX319MJA features: (1)Low On Resistance <20Ω Typical (35Ω Max); (2)Guaranteed Matched On Resistance Between Channels <2Ω; (3)Guaranteed Flat On Resistance over Analog Signal Range Δ3Ω Max; (4)Guaranteed Charge Injection <10pC; (5)Guaranteed Off-Channel Leakage <6nA at +85℃; (6)ESD Guaranteed > 2000V per Method 3015.7; (7)Single-Supply Operation (+10V to +30V) Bipolar-Supply Operation (±4.5V to ±20V); (8)TTL-/CMOS-Logic Compatible; (9)Rail-to-Rail Analog Signal Handling Capability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX319MJA |
Maxim Integrated Products |
Analog Switch ICs |
Data Sheet |
Negotiable |
|
||||||||||||
