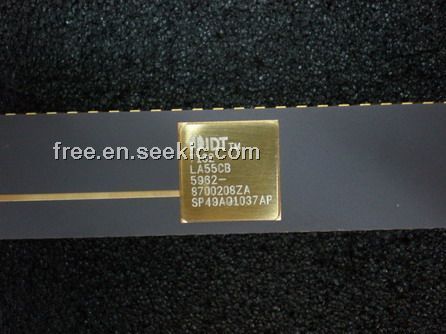

Product Summary
The IDT7132LA55CB is a high-speed 2K x 8 Dual-Port Static RAM. The IDT7132LA55CB is designed to be used as a stand-alone 8-bit Dual-Port RAM or as a “MASTER” Dual-Port RAM together with the IDT7142 “SLAVE” Dual-Port in 16-bit-or-more word width systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 16-or-more-bit memory system applications results in full-speed, error-free operation without the need for additional discrete logic.
Parametrics
IDT7132LA55CB absolute maximum ratings: (1)VTERM(2), Terminal Voltage with Respect to GND: -0.5 to +7.0 V; (2)TBIAS, Temperature Under Bias: -65 to +135℃; (3)TSTG, Storage Temperature: -65 to +150℃; (4)IOUT, DC Output Current: 50mA.
Features
IDT7132LA55CB features: (1)High-speed access, Commercial: 20/25/35/55/100ns (max.); Industrial: 25ns (max.); Military: 25/35/55/100ns (max.); (2)Low-power operation, Active: 325mW (typ.); Standby: 5mW (typ.); IDT7132/42LA, Active: 325mW (typ.); Standby: 1mW (typ.); (3)MASTER IDT7132 easily expands data bus width to 16-or-more; (4)bits using SLAVE IDT7142; (5)On-chip port arbitration logic (IDT7132 only); (6)BUSY output flag on IDT7132; BUSY input on IDT7142; (7)Battery backup operation —2V data retention (LA only); (8)TTL-compatible, single 5V ±10% power supply; (9)Available in 48-pin DIP, LCC and Flatpack, and 52-pin PLCC; (10)packages; (11)Military product compliant to MIL-PRF-38535 QML; (12)Industrial temperature range (-40℃ to +85℃) is available for selected speeds.

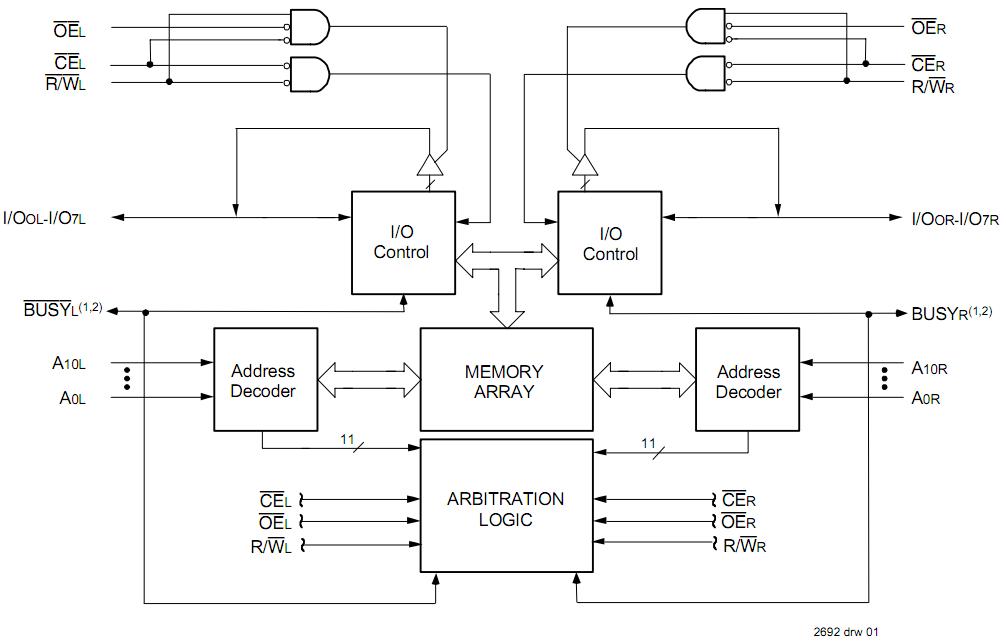

Diagrams
