AD711AQ

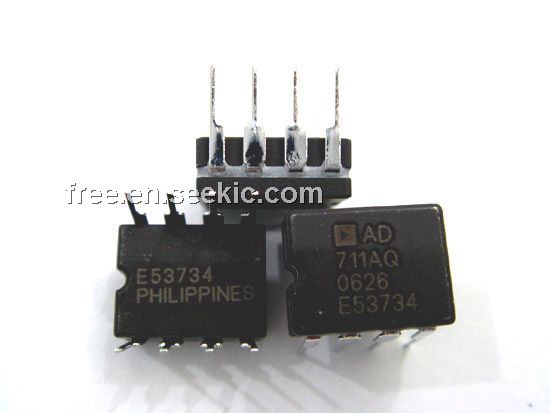

AD711AQ, BiFET Op Amp, DIP, ±18V, 500mW, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.80~3.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.80 / Piece

PartNumber:: AD711AQ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 500/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. HELEN's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-22

From Other Seller

Part Number:AD711AQ
US $3.80 - 3.80
Quantity:

piece

Product Summary

The AD711AQ is a BiFET Op Amp. The AD711AQ is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps. The superior ac and dc performance of this op amp makes it suitable for active filter applications. With a slew rate of 16 V/ms and a settling time of 1 ms to ±0.01%, the AD711AQ is ideal as a buffer for 12-bit D/A and A/D Converters and as a high-speed integrator. The settling time is unmatched by any similar IC amplifier. The combination of excellent noise performance and low input current also make the AD711AQ useful for photo diode preamps. Common-mode rejection of 88 dB and open loop gain of 400 V/mV ensure 12-bit performance even in high-speed unity gain buffer circuits.

Parametrics

AD711AQ absolute maximum ratings: (1)Supply Voltage : ±18 V; (2)Internal Power Dissipation : 500 mW; (3)Input Voltage : ±18 V; (4)Output Short Circuit Duration : Indefinite; (5)Differential Input Voltage ： +VS and –VS; (6)Storage Temperature Range (Q, H) : –65℃ to +150℃; (7)Storage Temperature Range (N) : –65℃ to +125℃; (8)Operating Temperature Range : –40℃ to +85℃; (9)Lead Temperature Range (Soldering 60 sec) : +300℃.
